Voltage: AC90-270V 50/60Hz

Bulb power: 500W

Power consumption: 600W

Bulb life: 2000H

Beam Angle: 2.7°~36°

Color Temperature: 9000K

Signal control: DMX512

Channel: 23CH

Pan movement: 540 °(16bit), auto repositioning

Tilt movement: 270 °(16bit), auto repositioning

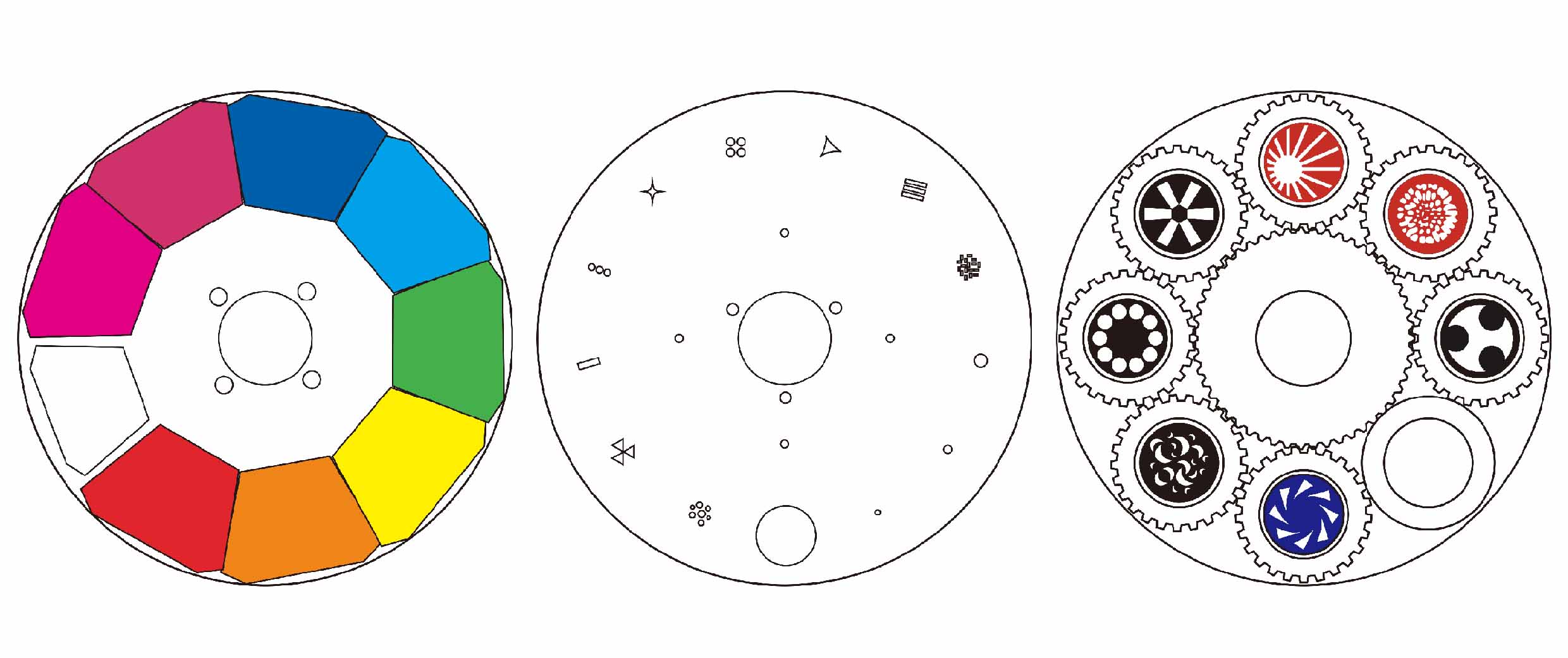

Color wheel: 8 fixed color + white,Color half color function, independent CMY+CTO color mixing system

Gobo wheel: Gobo wheel: 12 fixed gobo+ white

Rotating wheel: 7 glass gobo

Prism: 6 row prism and 8+8 prism

Focus: Linear adjustment 4 m to 50 m

Frost: 1 independent atomizing effect, light spot soft and natural

Dimming: 0~100% linear dimming

Strobe: 0 ~ 30 Hz/s

Work temperature: -20℃~40℃, good ventilation

IP rated: IP20

Product Size: 380×270×650mm

N.W.: 25kg

•
